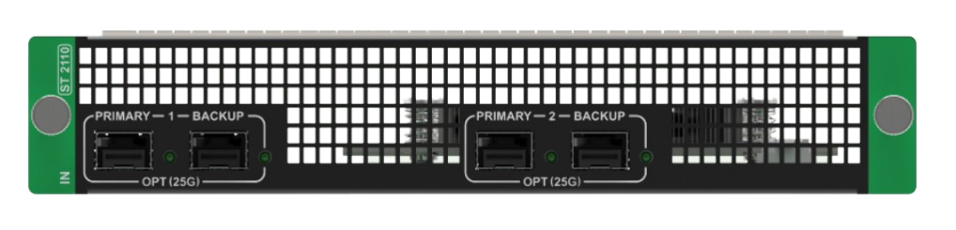

Q8_ST2110_4xSFP25G Input Card

• 2 primaries and 2 backups per input card

• Up to 4K×2K@60Hz 12bit 4:4:4

• Support for processing of 8-bit, 10-bit and 12-bit inputs

• Support for 4:2:2 and 4:4:4 inputs

• Standard: Support SMPTE ST 2110 (-10, -20) and SMPTE 2059 (-1, -2).

• Backup: Support the SMPTE 2022-7 standard.

• Custom resolutions:

◦ Maximum width: 8192 pixels

◦ Maximum height: 7680 pixels

• PixelFlow control: Support loading video stream configuration by

SDP file or directly inputting.

• PTP settings: Support the IEEE 1588-2008 standard, enabling highprecision synchronization across different input sources when Lock

Input to PTP is activated.

• IP address: IPv4 DHCP and static IP
